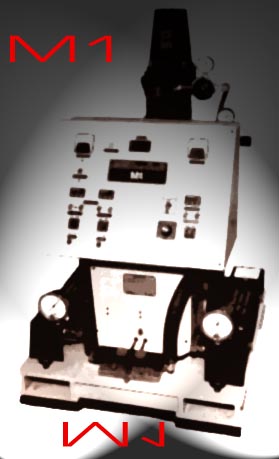

M1 Dispensing System | ||||
The M1 is a heavy duty, plural component dispensing system. It's design focuses on simple operation and easy field maintenance. the open system design makes components readily accessible for quick maintenance and troubleshooting. If your business deals with insulation, marine flotation and protective anti-corrosion coatings, the M1 will help you achieve your profit and quality objectives. For a reliable, trouble-free plural component dispensing system, look to the M1... the new industry standard. | ||||
Standard Features* |
||||
Probler Gun w/ flat spray tip | 50' Automatic Hose | |||
Heat Exchanger Assembly | Proportioning Unit Assembly | |||
Digital Electrical Control Assembly |
| |||
User Manuals |
| |||
Optional System Components | ||||
Up to 300' Heated Hose (50' Increments) Variable Ratio Pumping Section 1:1 to 1:28 | ||||
Technical Data | ||||
| U.S. | Metric | ||
Max. Output | 30 lbs/min | 14 kg/min | ||
Max. Operating Pressure | 3000 psi | 207 bar | ||
Max. Temp. | 190 F | 88 C | ||
Material ratio | 1:1 | 1:1 | ||
Air Requirement | 63 cfm @ 100 psi | 29 liters/sec @ 7 bar | ||
Electrical | 85 amps | 14,000 watts | ||
Primary Heaters | 7000 watts per side | 7000 watts per side | ||
Weight | 479 lb. | 217 kg | ||
Dimensions | h49 x w31 x d34 | h124 x 279 x 86 cm | ||
